ATN X-Sight 4K Pro 3-14x

Smart Ultra HD day & night system

HOW TO VIDEOS firmware

Ultra HD Optics with the ATN Revolutionary Ultra HD Day/Night Sensor
gives you an incredibly crisp picture from any distance

Choose Lens:

ATN X-SIGHT 4K PRO

3-14x

$ 699

Field of view - 460 ft (9°)

ATN X-SIGHT 4K PRO

5-20x

$ 799

Field of view - 240 ft (5°)

Ultra HD Sensor
With Ultra HD Optics

Night Vision Mode

The X-Sight 4K Pro offers an Enhanced HD Night Vision Mode.
Don't let the darkness slow you down.

Video Record — in sharp 1080p

Don't miss another opportunity to capture that once in a lifetime moment.

Record your Adventures in Full HD and take photos to bring adventures back home to share with friends, family and on social media.

Easy to mount — Easy to use

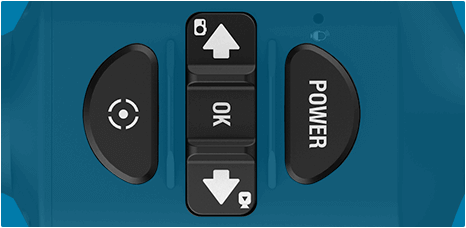

New controls

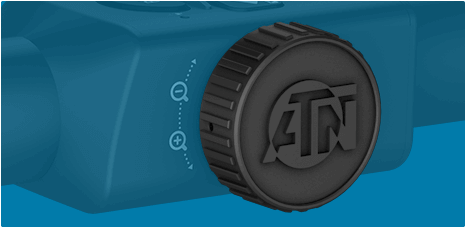

Spin to Zoom Wheel - what could be more Natural. While the new Tactile Buttons let you feel every click for optimal control.

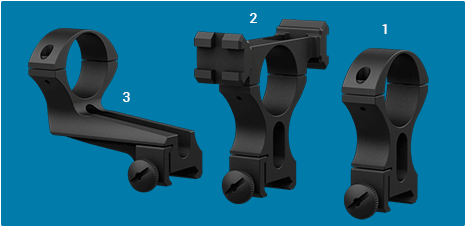

Included:

1. Standard ring

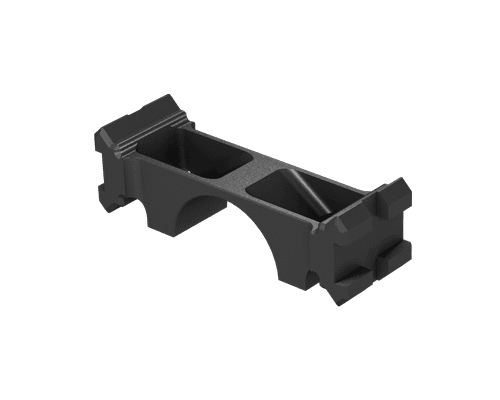

2. Ring with Picatinny rail

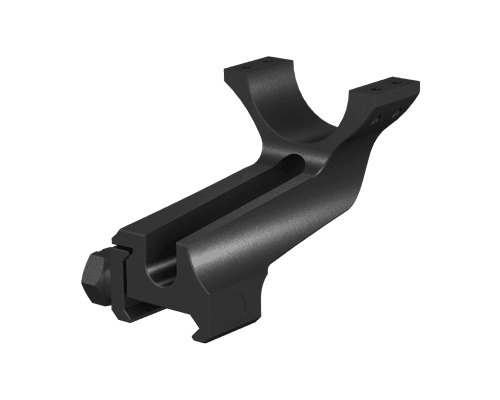

3. L-shape ring

Classical Ergonomics

21st Century Technology designed to make your Experience easy and familiar

EASY OPTICS ZEROING

Sighting in your ATN 4K optics has never been easier with our system.

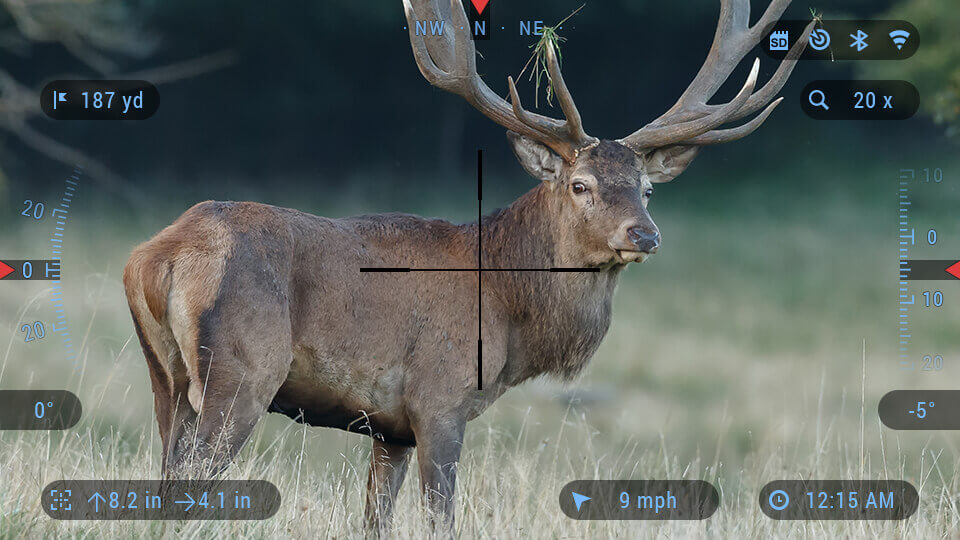

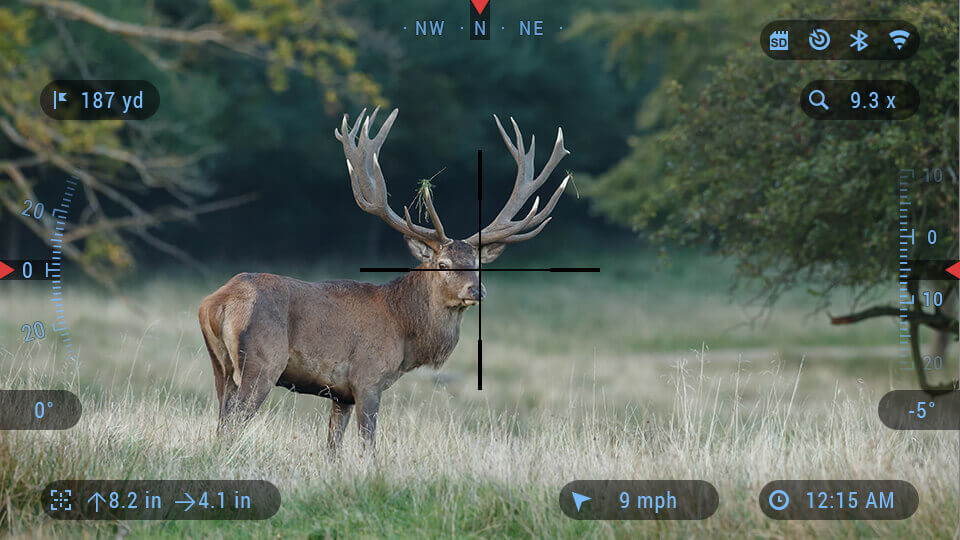

Smart Range RangeFinder

Fast and Easy way to make a good distance estimation. Take two easy readings of your target and our system will not only range in on your prey but adjust your reticle’s Point of Impact instantaneously.

Ballistic Calculator

No more complicated chart tablets and calculations.
Range, Wind, Multiple Profiles, Angle to target, Temperature, Humidity, more...

Profiles

R Type 223 Remington

Drag Function G1

Ballistic Coefficient 0.371

B. Weight 55 gr

Initial Velocity 2850 fps

Zero Range 100 yd

Sight Height 2.5 in

S. Angle -2°

Environment

Relative Humidity 85%

Wind Speed 12 mph

Wind Direction -45°

Temperature 59°F

Barometric Pressure 29.92 hg

Altitude 1800 ft

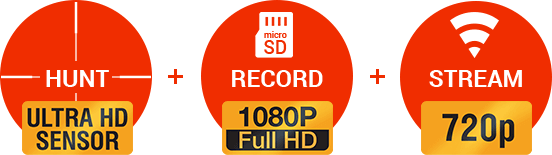

Dual Stream Video

You asked and we listened.
Obsidian 4 not only Streams Video at HD resolution but can simultaneously
Record to the SD card inside.

At the same time!

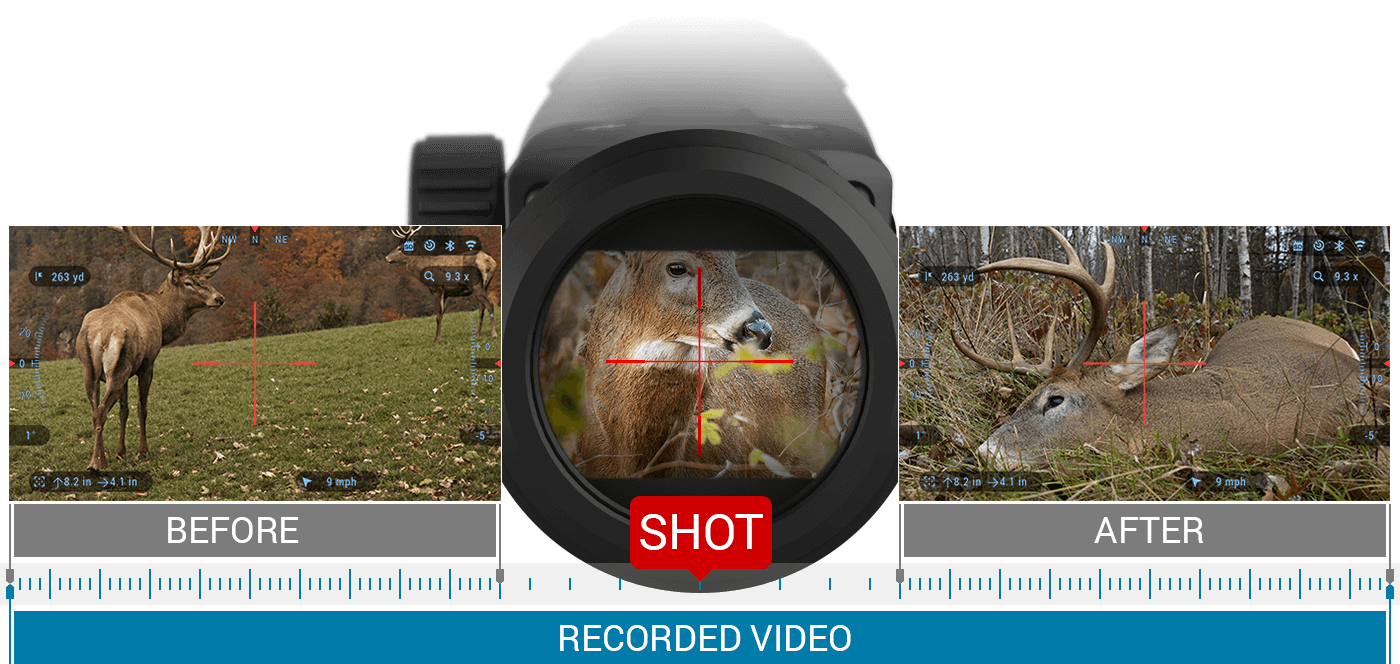

Recoil activated video

Never miss that Excellent Moment. Turn on RAV and let the X-Sight 4K Pro Record directly to your SD card.

Recoil Activated Video (RAV) takes care of all your worries. Just relax and focus on your game and let the Obsidian Core do the heavy lifting.

Ultra low power consumption

Our new Dual Core Processor not only runs fast but runs cool.
1st ever digital optics system with over 18hrs of continuous battery power.

18+

Hours of Continuous Use

Recoil
Resistant

Designed to withstand the high pressures. The X-Sight 4K Pro is built out of Hardened Aluminium Alloy with Impact Resistant Electronics.

TECHNICAL SPECIFICATIONS

	ATN X-Sight 4K Pro 3-14x	ATN X-Sight 4K Pro 5-20x
SKU	DGWSXS3144KP	DGWSXS5204KP
Magnification	3-14x	5-20x
Field of view at 1000 yds	460 ft (9°)	240 ft (5°)
Sensor	ATN 4K M265 Sensor, 3864 (H) x 2218 (V)
Core	ATN Obsidian IV Dual Core
System Resolution	600 lp/mm
Micro Display	1280x720 HD Display
Eye relief	90 mm
Video Record Resolution	1080p @ 30/60/120** fps
Ballistic Calculator	Yes
WiFi (Streaming, Gallery, & Controls)	iOS & Android
Bluetooth	Yes
3D Gyroscope	Yes
3D Accelerometer	Yes
E-Barometer	Yes
Smart Range Finder	Yes
RAV (Recoil Activated Video)	Yes
Electronic Compass	Yes
Smooth Zoom	Yes
Night Vision Mode	Yes
Reticles	Multiple Patterns & Color Options
Microphone	Yes
Micro SD card	4 to 64 Gb
Micro USB, type C	Yes
Mount	30 mm Standard Rings (included)
IR Illuminator	Included
Battery life (Li-ion)	18 + hrs
Battery type	Internal Lithium Ion Battery
Waterproof rating / IP rating	Weather resistant
Smart Mil Dot Value Range	1.0-10.0
Operating Temperature	-20°F to +120°F / -28°C to 48°C
Dimensions (body only)	13.8"x3"x3"/ 350x76x76 mm	14.9"x3"x3"/ 379x76x76 mm
Weight	2.1 lb / 0.94 kg	2.2 lb / 1.01 kg
Warranty	2 years

* This product is subject to one or more of the export control laws and regulations of the U.S. Government and it falls under the control jurisdiction of either the US Department of State or the US BIS-Department of Commerce. It is unlawful and strictly prohibited to export, or attempt to export or otherwise transfer or sell any hardware or technical data or furnish any service to any foreign person, whether abroad or in the United States, for which a license or written approval of the U.S. Government is required, without first obtaining the required license or written approval from the Department of the U.S. Government having jurisdiction. For further information please contact ATN.

** 120 fps Day mode only w/loss of widgets

Included accessories

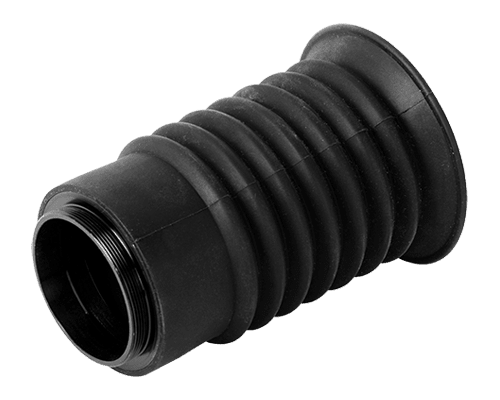

Eyecup

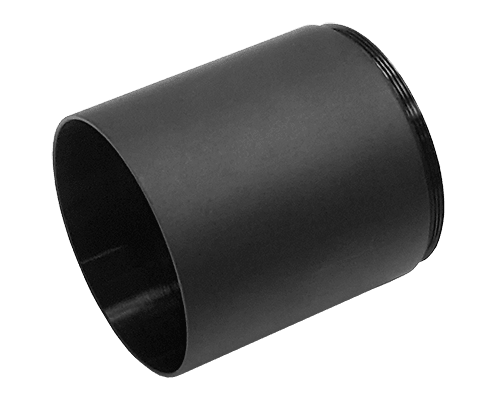

Sunshade

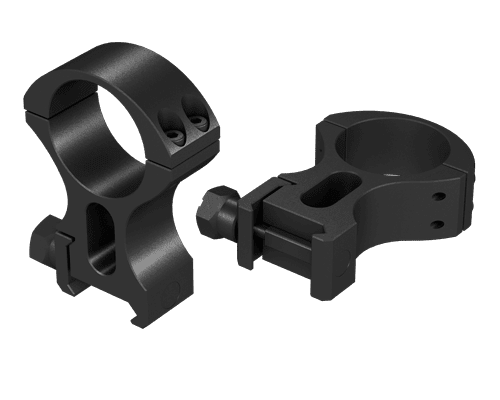

Standard rings (2pcs.)

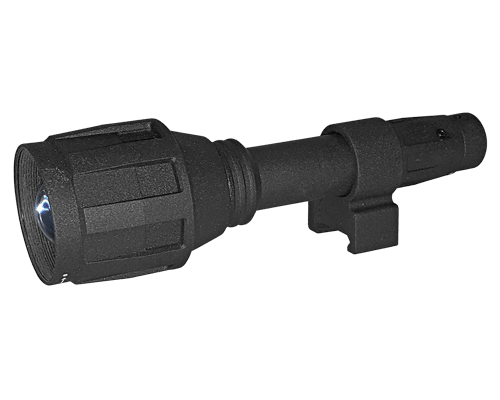

IR850 Infra-red Illuminator

L-shape ring

Ring with Picatinny rail

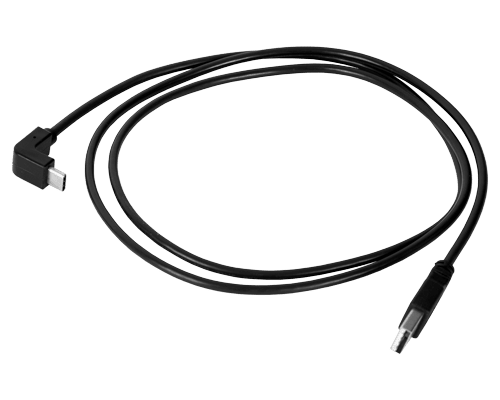

USB-C Cable

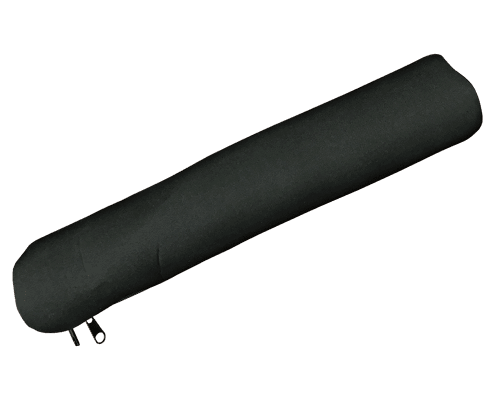

Cover

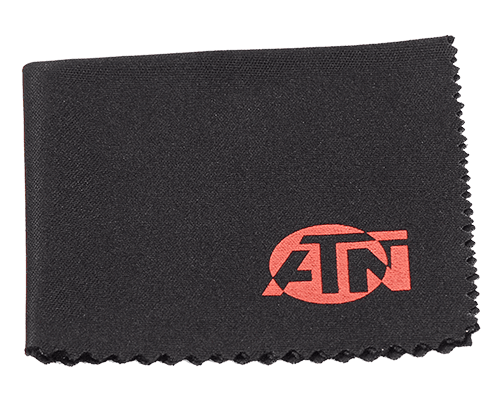

Lens Tissue
